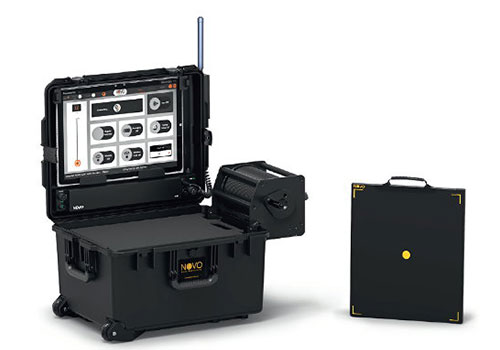

An RTVS system designed to take digital 16 bit X-Ray image on the spot to locate power source, mechanism, detonator, explosive materials etc. in any
concealed suspicious boxes/enclosure items. The Portable Digital Radiography System should have the Imager, X-Ray Source, Display Unit and System Accessories as per the below mentioned specifications:
- Imager:
- Imaging Area 40 cm X 30 cm.
- Imager Size 48 cm x 40 cm x 1.8 cm.
- Imager is a flat panel detectors of solid-state x-ray digital radiography using amorphous silicon.
- Imager weight: Less than 3.50 Kg with rechargeable battery.
- Dynamic Range / Bit Depth of the Imager True 16 bit.
- Robust and tough design to withstand drop test of 100 cm & 150 kg load proof weight
- High Image quality with high 16 bit resolution.
- Imager with inbuilt wireless option as well as wired option with robust Titanium magnetic connector for wired option for data transfer.
- Seamless wireless connection from Imager to control unit – when violently disconnected, it instantly and automatically goes over to wireless connection with no restart required.
- Continuous working time of the Imager 4 hrs.
- X-Ray Source:
- Pulsed X-Ray
- No radioactive material.
- Penetration: 25 mm of Stainless Steel (SS)
- The X-Ray source of 270 KVP or more energy
- The weight of X-Ray source with battery is less than 6 Kgs
- Less X-Ray dose (Output dose not more than 4.0mR/Pulse for a user – measured from 1 meter from X-Ray Source)
- Minimum Exposure Time
- Remotely operable through wireless as well as wired option
- The X-Ray Source can be operated with standard commercial available rechargeable Lithium-Ion batteries
- User friendly to use
- Display Unit:
- Ruggedized tablet with 10” screen size with HD daylight-readable with intel core i5 or latest processor, 8 GB RAM, 256 GB SSD Hard Disk, latest Windows Operating System and USB connectors
- Touch screen for easy operation
- The display unit weight with battery is less than 1.5 Kgs
- The display unit works on normal windows operating system
